CT9 PRO TCP/IP Standalone RFID and Keypad Access Control Terminal

• Overview
• Product Overview
• Product Features
• System Configuration
• Our Service
• Related Product

Overview

Basic Info.

Model NO.	CT9 PRO
Interface	Serial Port, 4G. WiFi, TCP/IP, RS485, Weigand
Reading Distance	10cm-15m
Application	Parking, Hospital, Library, Company, Bank, Store
Product	TCP/IP Access Control Terminal
Operating System	Linux OS
Display	3.5" Touch Display with Touch Pincode
Mobile Credential	BLE, NFC, Qr Code, Barcode
RFID	MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b, N
Communication Interface	WiFi, 4G, TCP/IP, RS485 (Osdp), Wiegand
Work Mode	Standalone & Network Mode
User/Log Capacity	10, 000; 50, 000
Power	12-30V, Poe
Protection	IP65 Waterproof
Software	Sdk and Mobile Phone APP Demo
Certification	CE, FCC
Transport Package	Well Package
Trademark	CIVINTEC
Origin	China
Production Capacity	1000PCS/Month

Product Description

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
Multiple Access Credential
CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

Cloud Server Remote Control for Security & IoT System
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management


Multiple Application Solutions

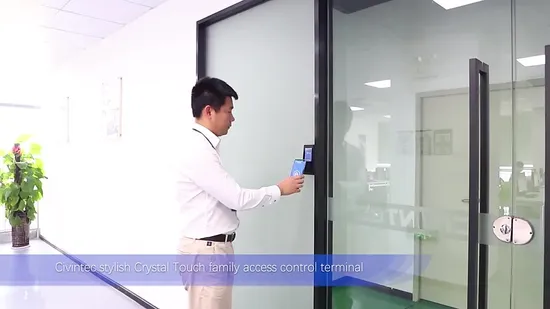

Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED. It can also control facility to build IoT solution.

Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.

User can free program and display own LOGO on 3.5" touch screen. Civintec also offer OEM LOGO printing on reader body.

Product Overview

Display	3.5" capacitive touch screen
QR code	Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.
Mobile ID	BLE, NFC
RFID smart card	EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags (T2T, T4T), ISO14443B
SAM slot	ISO7816(T=0,T=1) 1 SAM module, more on request
Communication interface	4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2, customizing protocol on request
Power Supply	12-30V DC; PoE IEEE 802.3af
Indicator	Controllable buzzer
I/O Port	Relay output, Tamper alarm switch, door contact, door exit, Buzzer control, output Buzzer control
Offline Card Users/Event logs	10,000 users / 50,000 logs (more on request)
IP protection	IP65
Certification	CE approved
